EOS 6D Mark II Vs. EOS 5D Mark IV | Which One To Opt For?

Canon is a pretty reputable brand when it comes to DSLRs. And full-frame DSLRs have gotten quite cheap over the years. Even a beginner nowadays can afford to upgrade and start off with a full-frame DSLR.

Entry-level full-frame DSLRs usually come with some compromises compared to the higher end ones. But they are still pretty good for you to consider upgrading to even if you are just starting off. Canon has two great options at this range, the EOS 6D Mark II and the EOS 5D Mark IV. Today we are going to put these two cameras through their paces so you can decide which to go for.

The Canon EOS 6D Mark II and 5D Mark IV were released back in June 2017 and August 2016, respectively. So the Canon EOS 5D Mark IV is not even a year older than the Canon EOS 6D Mark II.

The Canon EOS 6D Mark II was released at a lower price point than the Canon EOS 5D Mark IV. But as the Canon EOS 5D Mark IV is older, it is much easier to find at a desirable price. So this should be a fair fight, even considering the ten months of advancement in technology and the price difference. So with that being said, let’s start.

Canon EOS 6D Mark II

The Canon 6D Mark II is a great revision to the original Canon 6D. Released back in 2017, the camera comes with different kit options. The kit options are as follows: an EF 24-105mm IS STM lens option, an EF 24-105mm USM lens, and an EF 50mm f/1.4 USM Standard & Medium fixed telephoto lens option.

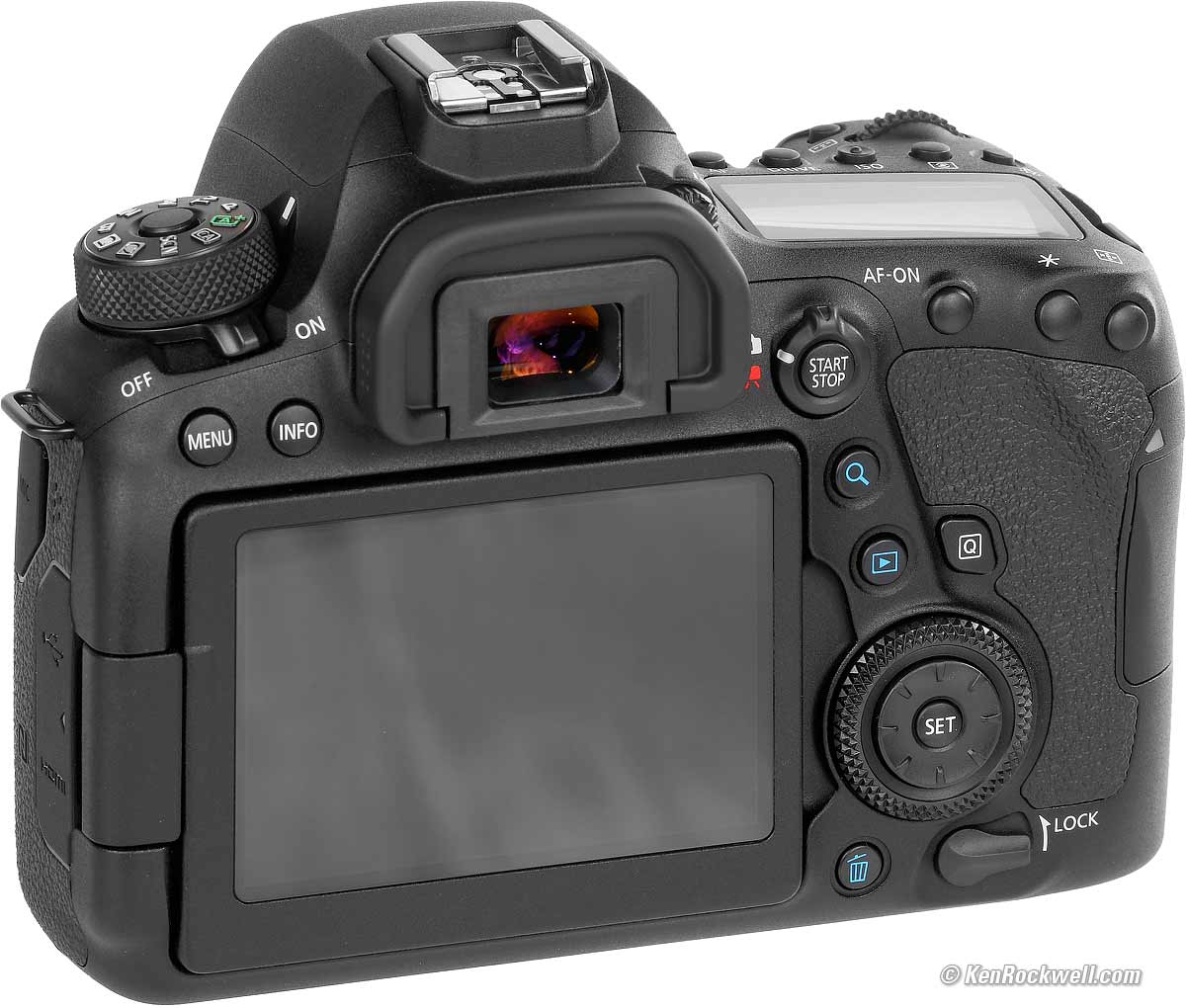

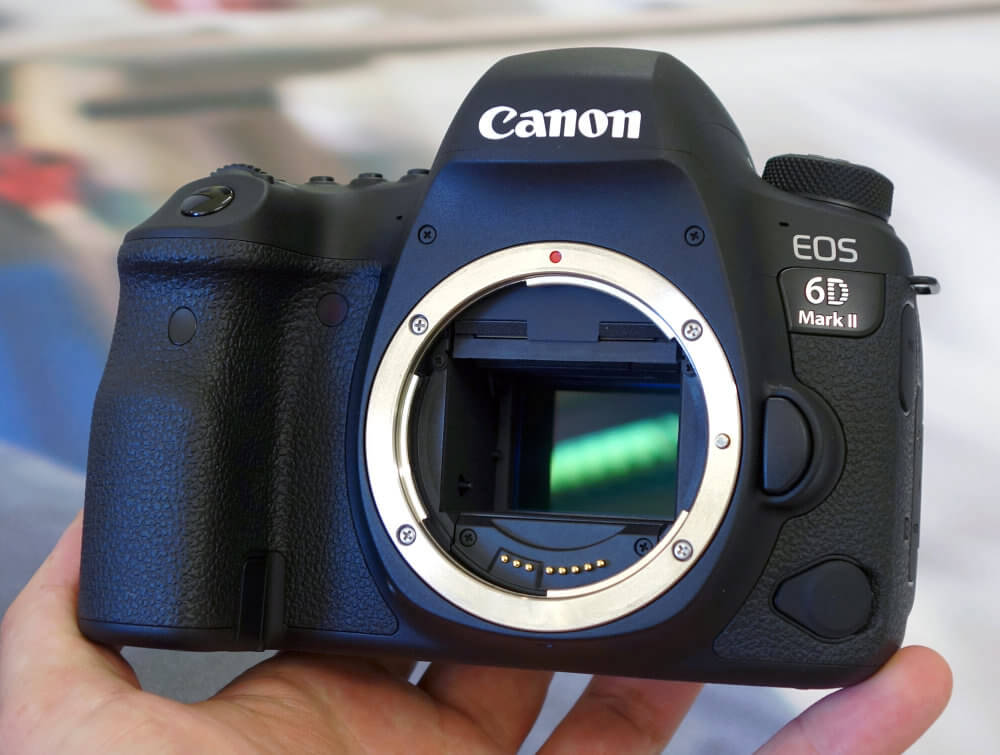

Body

Full-frame DSLR cameras are usually pretty heavy. Coming in at 765 g, the Canon EOS 6D Mark II is one of the lighter ones. Some may think that is due to fewer features being packed in, and they might favor a heavier camera. While that assessment may be true, the camera is pretty up to par.

The camera also is a bit smaller than other full-frame cameras. The actual dimensions of the body are 2.9 x 5.7 x 4.4 inches. For a full-frame DSLR, it is portable and easy to carry around. This is mostly due to the new DIGIC 7 SoC taking up less space inside.

The camera supports Canon EF mount lenses. But you won’t be able to mount your existing EF-S and EF-M lenses if you are upgrading. Full frame cameras don’t generally support that.

The controls are a bit wonky because it doesn’t have any joystick for moving the focusing point. You do get a four-axis d-pad to move the focusing points left, right, up, and down. You can quickly move focusing points using your thumb on the d-pad. But the button placements still aren’t quite right.

The body features decent weather sealing. It is dustproof as well.

The way this camera is designed, it is pretty hard to shoot vertically. So we highly recommend getting the vertical grip if you do a lot of vertical shooting. Vertical shooting becomes much easier with it as you can change settings effortlessly while having the stability of the grip. If you buy additional batteries with it, you can also extend the battery life that way easily.

Battery Life

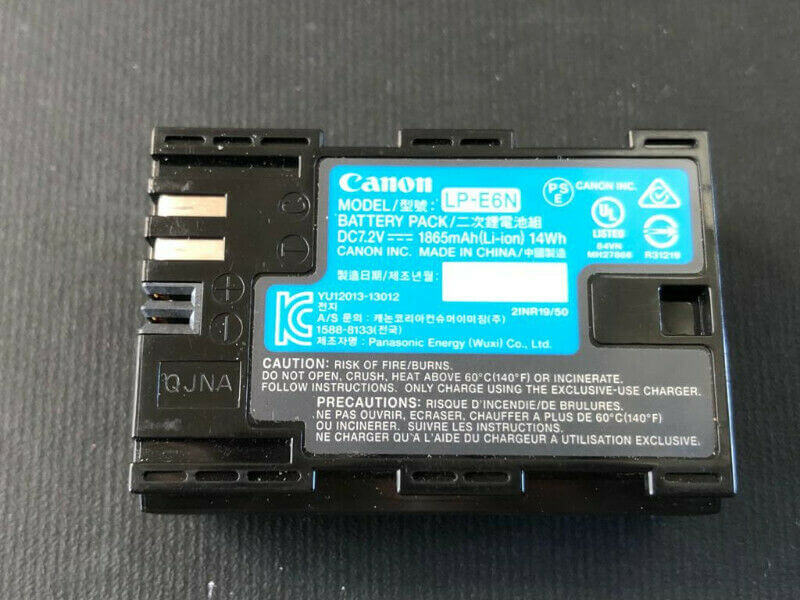

Being a recent model, the battery life of the Canon EOS 6D Mark II is pretty good for a full-frame camera. The camera uses an LP-E6N battery pack. It can take up to 1200 shots on a full charge. The new DIGIC 7 processor is also very efficient and makes the camera long-lasting. If you get the vertical grip, you can buy batteries for that to make the camera last even more, as explained before.

Sensor

This camera uses a large full-frame CMOS sensor. The sensor is 35.9mm wide, 24mm high, and 43.2mm diagonally. So the sensor area is 862 millimeters squared. The format factor of this sensor is 1.0. The sensor is a 26-megapixels one and can take up to 6240 x 4160 resolution raw images.

The native ISO range of the sensor is also pretty good, from 100 to 40000 ISO. Not to mention that the sensor also supports ISO boost, which increases that range even more from 50 to 102400.

A lot of users have reported that the camera is not very good at 100 ISO dynamic range wise. It has nine stops of dynamic range at 100 ISO. This is similar to other cameras in this range or even costlier cameras. The Canon 6D Mark II might not be the best at 100 ISO. But in a real-world situation, you most likely have to adjust your ISO to higher ranges according to your needs anyways. So we don’t really think it is too big of a problem.

One of the biggest upgrades the Mark II saw over the original 6D is it now has 45 autofocus points. And all of them are crossed types. But the focusing points aren’t properly spread out properly to the edges of the frame. They are all clumped up near the middle of the frame. So if you get this camera, you’ll always have to keep that in mind and adjust accordingly. If you want a sharper photo of a subject, you always need to keep the subject in the middle of the frame. It is a bit of a shame how the focusing points are spread out in a full-frame camera like this. But most manufacturers do the same for their entry-level full-frame DSLRs.

Connectivity

The Canon EOS 6D Mark II supports Bluetooth 4.1 for easy transfer. It also supports NFC for easy pairing. The camera even has built-in WiFi to upload the photos to a different place. It also features built-in GPS for location geotagging. All in all, this camera is very good at the number of wireless connectivity options it provides. It even supports Eye-Fi cards as well.

This camera does not have a PC sync socket, which is a bummer. So it can’t control professional strobe lights.

The camera does have a mic in port for connecting an external mic. But it does not have a headphone jack output to monitor the audio being recorded. And that is not very ideal.

The USB port in this camera is USB 2.0. A USB 3.0 port would have been nice here. The display out port included here is a mini HDMI type C port.

Features

This camera features a 0.72x optical viewfinder, which is pretty good. But the field of view of the viewfinder is only 98%. Now the rest of the 2% doesn’t really make a big difference. Still, Canon’s decision to not go with a 100% field of view viewfinder on a full-frame camera is a little bit confusing for sure.

The most notable thing here is that the camera can only shoot videos up to 1080p resolution at 60 FPS. This is a massive letdown as most newer, and even some older entry-level full-frame DSLRs have had 4k recording capability for a while. The camera can shoot 4k time-lapse videos, so it most probably has the ability to support 4k recording. But it seems like Canon just has not unlocked it to not hamper their other entry-level full-frame camera sales. It also supports five-axis video stabilization. Granted, it’s digital stabilization. So you are going to crop down on your video a little bit by having it turned on. But it does work very well and is very useful, especially for vlogging.

Now one of the features you are absolutely going to love in this camera is dual-pixel autofocus. Because if you are shooting a video, you might want the camera to do autofocus. The feature will track your subject. It works fantastically on the 6D Mark II.

The camera does have UHS-1 card support. But as it launched recently, many expected it to have UHS-2 or UHS-3 support. The camera also doesn’t have a backup memory card slot in case your main card gets corrupted or damaged.

It comes with a decent touch input capable LCD screen with 1040k dots resolution. The biggest advantage here is the screen is swivel capable and articulate. This is great for vlogging and selfies.

Sample Photos Taken From The Canon EOS 6D Mark II

Canon EOS 5D Mark IV

The Canon 5D Mark IV is another great full-frame DSLR from Canon. Released back in 2016, the camera comes with two different kit options. An EF 24-70mm f/4L IS USM Lens Kit, and an EF 24-105mm f/4L IS II USM Lens Kit. Being more than four years old at this point, it has come down in price quite a lot. And now it can go toe to toe with the other entry-level full-frame cameras at this price range.

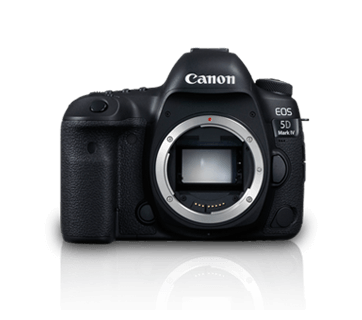

Body

At 890 g, the 5D Mark IV is pretty heavy. But that is to be expected for a full-frame DSLR.

It is pretty big and bulky, too, as you may have expected. The actual dimensions of the body are 3 x 5.9 x 4.6 inches.

The body has a Canon EF lens mount and does not support EF-S and EF-M lenses. The controls are pretty good. All the buttons are at the right positions for you to effortlessly control the settings. Most importantly, it does have a joystick.

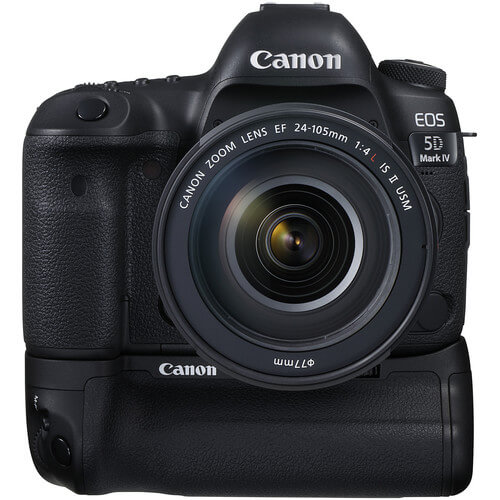

Vertical shooting can be a little difficult with this massive body. So we recommend getting the vertical battery grip. Shooting vertical shots is a piece of cake using that accessory.

This camera has one of the best weather sealing available in a full-frame camera body. It is very useful for outdoor photography in rough conditions.

Battery

The Canon EOS 5D Mark IV has pretty decent battery life. This camera also uses an LP-E6N battery pack. But it can only get up to 900 shots from a full charge. That is partly due to the older DIGIC 6+ SoC not being very efficient. It was pretty great when it came out. The battery grip comes especially handy in this case.

Sensor

The camera also uses a large full-frame CMOS sensor, and it is indeed very large. The dimensions of the sensor are 36mm wide, 24mm high, and 43.3mm from corner to corner. So the actual sensor area comes at 864 millimeters squared, and that is massive in itself.

The best format factor for this sensor is 1.0, and the native aspect ratio is 3:2. It is a 30-megapixels sensor with a pretty low pixel pitch of 5.36 μm. And the pixel density comes around 3.48 MP per square centimeter. The max image resolution you can get with this camera is 6720 x 4480 pixels.

This camera has a native ISO range of 100-32000. Some might expect a bit more range out of their full-frame DSLRs, but it’s perfectly fine considering the resolution bump. And the camera supports ISO boost as well, expanding the range from 50 to 102400.

You get 61 autofocusing points in this camera, with 41 of them being crossed type. It does its job just fine with the focus points.

Processed jpegs come out pretty good from the Canon EOS 5D Mark IV with good color rendition. The DIGIC 6+ processor does work very well with the sensor to produce some excellent results. But it is nowhere near going to be as good as some of the newer processors in terms of processing speed, noise reduction, and things like that. So we expect most professional photographers to take the raw files out of this camera to edit themselves.

This camera introduced a setting named Dual Pixel Raw. Previously you could only use the dual pixel autofocusing system on videos. This feature lets you use the dual pixel autofocus in your images to make micro-adjustments later. It is pretty usable and comes in handy.

Connectivity

Even though the 5D Mark IV does not have Bluetooth support, it does have WiFi and NFC built-in. It also features an inbuilt GPS system for geotagging, just like the 6D Mark II. It even has Eye-Fi card support.

This camera does feature a PC sync socket so you can easily control your studio lights right from the camera. This is a massive advantage as not many entry-level full-frame DSLRs have it.

The camera features a mic input port along with a headphone jack for monitoring the audio. It even features a USB 3.0 terminal for moving images and videos faster.

The camera has a mini HDMI type C port for display output. It does support 4k recording, but unfortunately, the mini HDMI type C port does not support any form of 4k output.

Features

The Canon 5D Mark IV features a 0.71x magnification optical viewfinder. It has 100% FOV as a full-frame camera should have. Overall the viewfinder is pretty good and works as intended.

This camera does support 4k video recording, as mentioned before. You get two FPS modes in 4k 24 frames per second and 30 frames per second. And you can shoot continuous 4k up to 29 minutes and 59 seconds. But do remember that the camera has a 1.74x crop factor at 4k. So you do lose the extra wide-angle. As always, the camera also supports 1080p recording at 60 FPS. Most notably, it can also shoot baked in slow-motion footage at 720p 120 FPS. The dual pixel autofocus system also really shines here and does an excellent job of tracking a moving subject.

It can shoot up to 7 frames per second. So capturing sports or any other fast-paced action is pretty good with this camera. You can later scrub through the images to pick the best one.

The camera does have two card slots. One is a UHS-1 compatible SD card slot, and the other is a CF (Compact Flash) slot. Now when the camera was released UHS-2 standard was already out. So it is pretty disappointing to not have that supported, especially when the camera can shoot large 4k videos. It would have been much faster to move those large files around. Even CFast card support would have been great here. But unfortunately, it does not support that as well. But built-in WiFi makes up for it. Regardless, the camera does have two card slots, so you can use one of them as a backup slot.

It comes with a fixed 3.2-inch touch screen. It is a fixed LCD display with 1620k dots resolution.

Sample Photos Taken From The Canon EOS 5D Mark IV

Specs Comparison

Model Name	6D Mark II	5D Mark IV
Release month and year	June 2017	August 2016
Camera type	Full-frame DSLR	Full-frame DSLR
Lens mount	Canon EF Lenses (excluding EF-S lenses and EF-M lenses)	Canon EF Lenses (excluding EF-S lenses and EF-M lenses)
Body dimensions	2.9 x 5.7 x 4.4 inches	3 x 5.9 x 4.6 inches
Bodyweight	765 g	890 g
Weather sealing	Available	Available
Battery type	LP-E6N battery pack	LP-E6N battery pack
Battery life	Up to 1200 shots per full charge	Up to 900 shots per full charge
Joystick	Unavailable	Available
Sensor type	Full-frame CMOS sensor	Full-frame CMOS sensor
Sensor resolution	26-megapixels	30-megapixels
Max photo resolution	6240 x 4160 pixels	6720 x 4480 pixels
Native ISO range	100 to 40000	100 to 32000
ISO boost range	50 to 102400	50 to 102400
Max Video Capability	1080p 60 FPS	4k 30 FPS
Viewfinder FOV	98%	100%
Continuous shooting capability	Six and a half frames per second	Seven frames per second
Shutter Speed	1/4000s	1/8000s
Processor	DIGIC 7	DIGIC 6+
Pixel pitch	5.76 μm	5.36 μm
Pixel density	3.01 MP per square centimeter	3.48 MP per square centimeter
Screen resolution	1040k dots	1620k dots
Focus system	Dual Pixel autofocus	Dual Pixel autofocus
WiFi	Inbuilt	Inbuilt
NFC	Inbuilt	Inbuilt
Bluetooth	Inbuilt (Version 4.1)	Unavailable
GPS	Inbuilt	Inbuilt
Headphone jack	Unavailable	Available
Dual memory card slot	Unavailable	Available
UHS card compatibility	UHS-1 compatible	UHS-1 compatible
Storage options	SDXC cards	SDXC and Compact Flashcards
Microphone port	Available	Available
Screen size	3 inches	3.2 inches
Screen adjustments	Swivel and rotatable	Fixed
USB port	USB 2.0 port	USB 3.0 port

Conclusion

Looking at the above assessment, you might think that the Canon EOS 5D Mark IV is clearly the better camera. But it really does depend on your use case scenarios. If you are comfortable with carrying around a bigger and heavier camera, the 5D Mark IV should be your choice. If you prefer better controls and button placements, you should also opt for the 5D Mark IV. But if you really need portability and better battery life, you should look at the 6D Mark II. That being said, both cameras are fantastic choices for someone starting off with full-frame DSLRs and should serve you well.
